Product Video

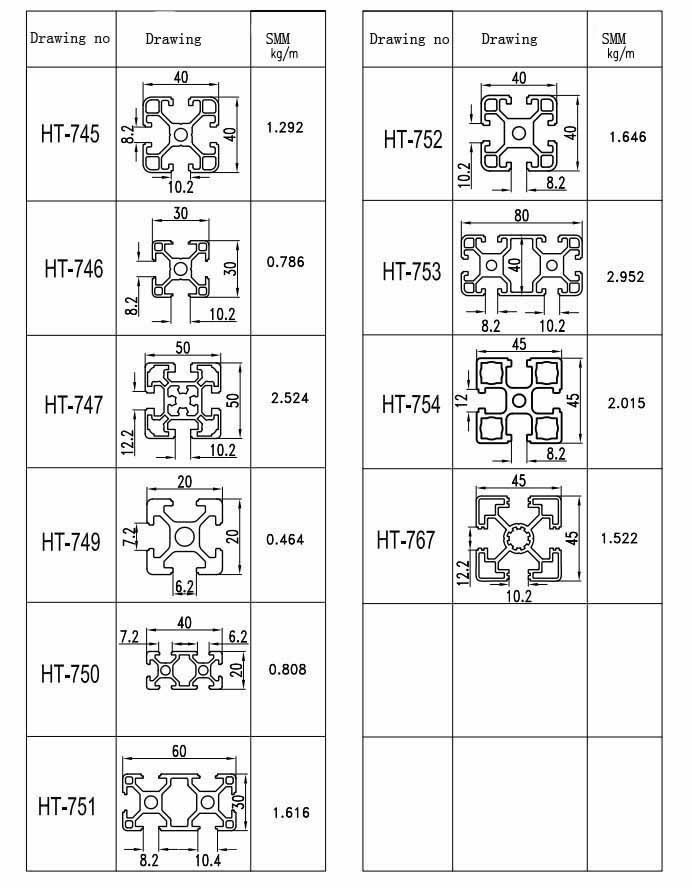

Aluminum Extrusion Profile for Assembly Line

Aluminum Extrusion Profile of Assembly Line

Description
As the industrial aluminum profile, this range of aluminum extrusion profile varies in colors and shapes. Our product is designed in particular specifications and cross sections including the aluminum cylinder, aluminum channel, aluminum rectangular tube, aluminum corner and so on.

With high dimensional accuracy, it is popularized in the fields of radiators, fitness machinery, lighting instrument, cars, electronics, textiles, medical industry, etc.

Feature
1.This aluminum extrusion profile for assembly line is light in weight, yet it owns high strength and credible stability.
2. It performs with excellent resistance to corrosion, abrasion, acid and alkali, working for a long time without maintenance.
3. This product adopts the aluminum alloy that is the incombustible material, capable of resisting strong impact.
4. With the particular design, it is jointed tightly with other pieces, functioning excellent sound proofing effect.
5. The product used for the door and window is usually made in waterproof structure.

Specifications
Profile type Building profile, industrial aluminum profile used in cars, trains machinery, trailers, electronics, medical and other industrial fields.
Material Alloy 6063, 6061,6005 or can be customized
Temper T3, T4, T5, T6
Surface treatment Anodizing, electrophoresis coating, powder coating, mill and matted finish, PVDF coating, sandblast, wood grain painting, etc.
Color Silver, golden, satin, cream, white, blue, red, champagne, simulated stainless steel, sand, bronze, black, etc.
Vickers hardness 8-14HW
Thickness Minimum 0.8mm for profile, 8-20um for oxidation film, 40-120um for powder coating.
Machining High-precision machining includes milling, drilling, bending and cutting
Molding 1. Our free moulds can be used. 2. The mould can be made according to customer's drawing, yet the mould fee needs to be paid.
Standard GB/ T5237 - 2004, GB/T6892-2000, ISO9001 and ISO14001 certificates
MOQ 1 ton. Usually 12 tons for a container of 20 feet, 24 tons for a container of 40 feet.
FOB port Shanghai, etc.

Primary Technical Data

1.Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest
2. Mechanical Property
Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%

Competitive Advantage
1.This aluminum extrusion profile of assembly line utilizes the engineering design and support.
2. In the manufacture process, it bears a range of treatments deeply, like cutting, punching, drilling, milling and fabricating.
3. Under the strict quality control, this product is inspected cautiously in the production. Prior to the package, the integrated inspection on product is necessary.
4. We offer 15 years of warranty on our product with excellent performance.
